Boaters’ Resale Shop of TX 2305 2527.17 BOMAR NIBO 22-5/8-22-5/8" HATCH N1039-10

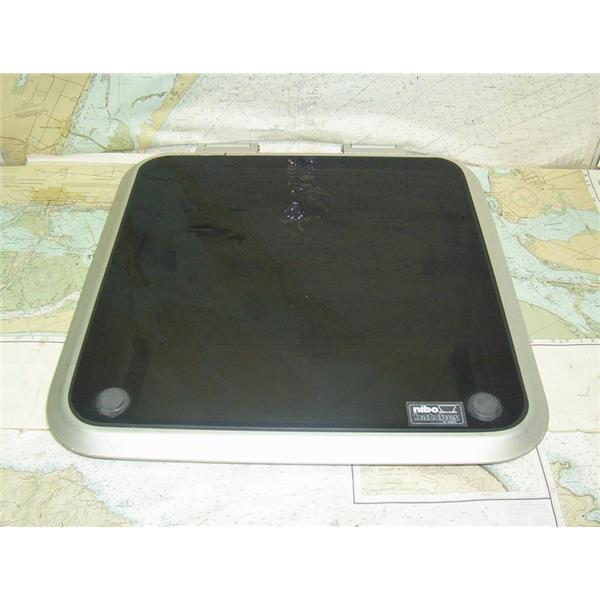

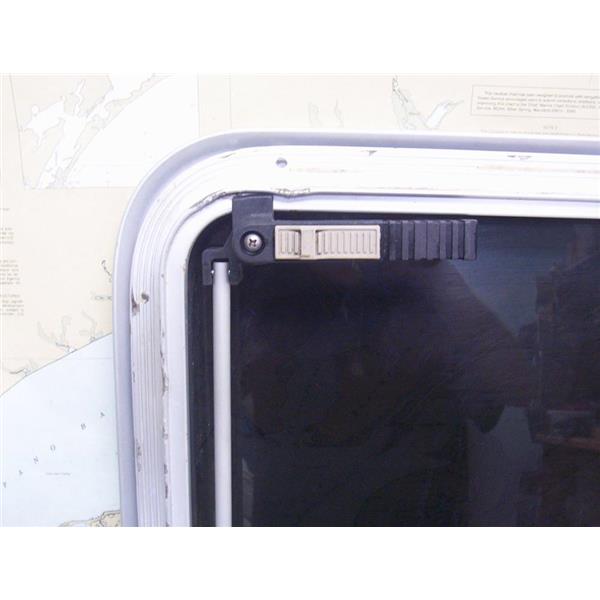

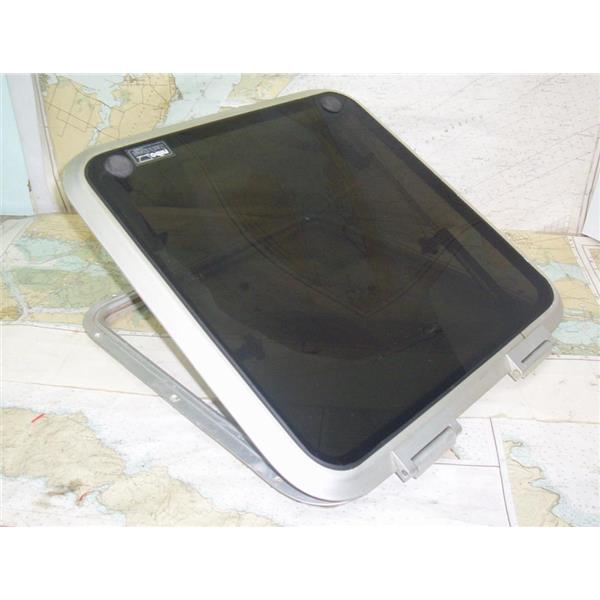

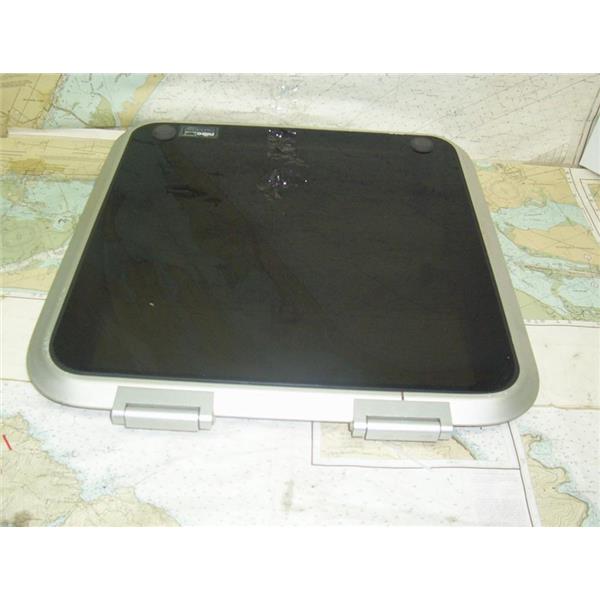

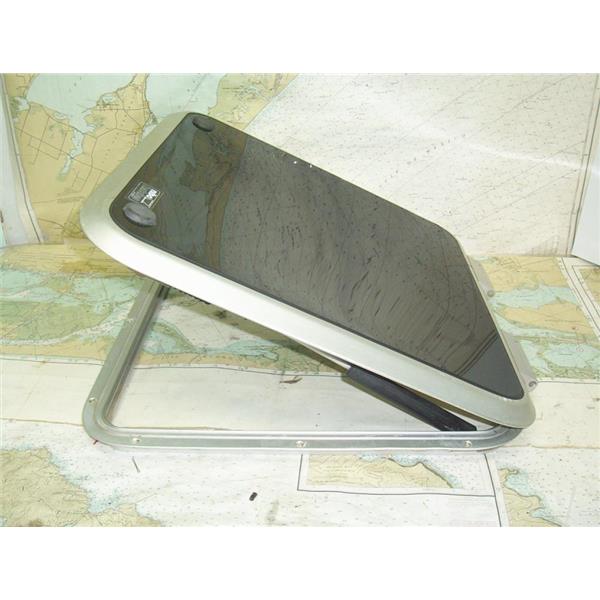

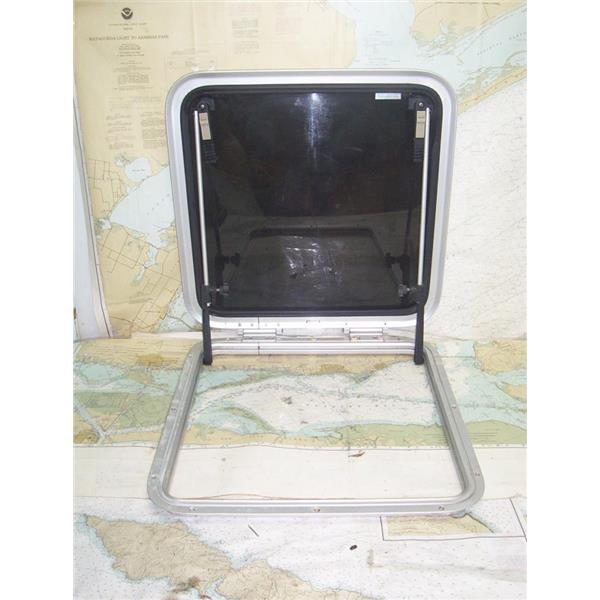

Boaters’ Resale Shop of TX 2305 2527.17 BOMAR NIBO 22-5/8-22-5/8" HATCH N1039-10A * OVERALL DIMENSIONS: 22-5/8″ x 22-5/8″ * CUT-OUT DIMENSIONS: 20-3/16″ x 20-3/16″ * Hatch opening: 19-1/16″ x 19-1/16″ * Deck-to-lid height: 15/16″ * SEE ALL 6  PHOTOS * SOLD AS PICTURED * ITEM WAS PRE-OWNED, USED, HAS A BENT SPOT (BY LATCH) BUT GASKET IS IN FAIR PHYSICAL CONDITION AND HATCH APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER


Nibo Low-Profile Aluminum Frame Hatches
These super low-profile hatches are constructed of anodized, heavy-duty aluminum and tough smoked-acrylic. No sharp corners to snag lines. Adjustable tie-down dogs.Anodized heavy-duty aluminum frame, smoked-acrylic lens
Adjustable latches with locked vent position * Heavy-duty hinges with stainless-steel supports
    Hatch opening: 19-1/16″ x 19-1/16″ (484 mm x 484 mm)
    Cutout dimensions: 20-3/16″ x 20-3/16″ (513 mm x 513 mm), 1-11/16″ (43 mm) corner radius
    O.D. deck flange: 21-13/16″ x 21-13/16″ (554 mm x 554 mm)
    O.D. lid: 22-5/8″ x 22-5/8″ (575 mm x 575 mm), 2-7/8″ (73 mm) O.D. radius
    Deck-to-lid height: 15/16″ (24 mm)
