Boaters’ Resale Shop of TX 2404 5151.27 RULE WHALE 17A LIVEWELL/WASHDOWN PUMP

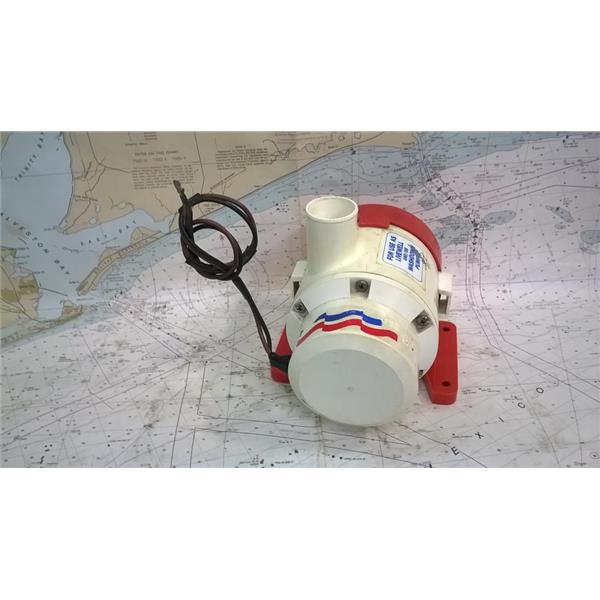

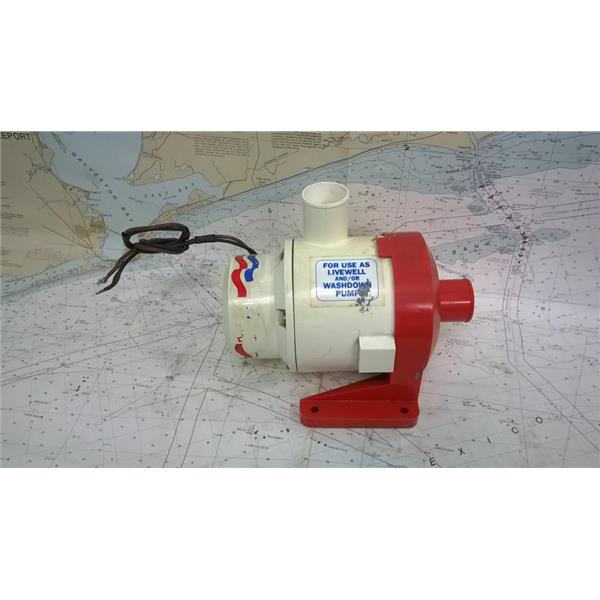

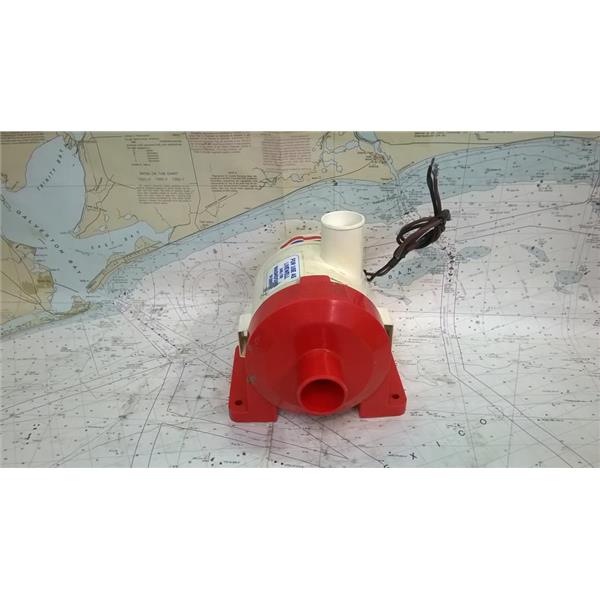

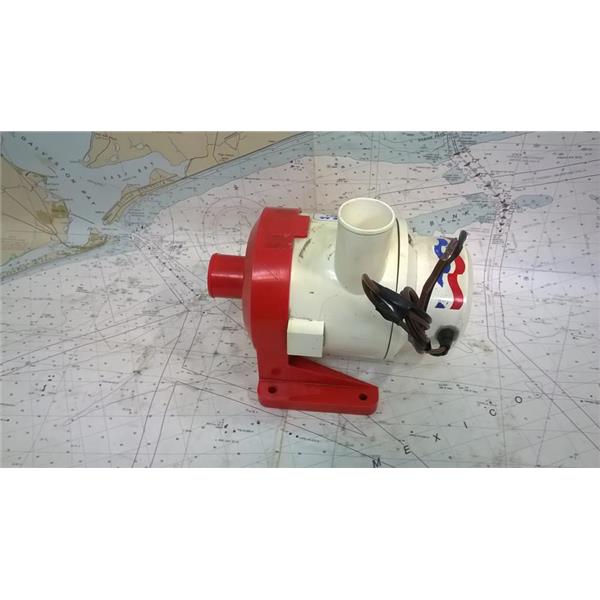

Boaters’ Resale Shop of TX 1909 2422.10 RULE MODEL 17A LIVEWELL/WASHDOWN 3800 GPH 12V PUMP with 16" WIRES * SEE ALL 4 PHOTOS * SOLD IN CONDITION PICTURED * ITEM WAS PREOWNED, USED, IN FAIR PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY, POWERS UP, SUCTION IS PRESENT AND PUMPS BUT HAS NOT BEEN TESTED FURTHER

Description:
Rule 17A General Purpose Centrifugal Pump 3800 GPH 12V
Designed for use as a washdown pump and/or Livewell tank pump, this 12V pump delivers water at 7-10 psi.
Advanced safety features include anti-airlock and ignition protection.
Heavy-duty construction, with a double-insulated motor. Can run dry without damage.
It must be mounted below the waterline.
It does not deliver high pressure, nor is it self-priming. It delivers lots of water but at low pressure.
Specifications:
Flow Rate: 3800 GPH (14380 LPH)
Open Flow Output @ 13.6V:
With 3.35' (1 m) Head: 2900 GPH (10977 LPH)
With 6.2" (2 m) Head: 2450 GPH (9274 LPH)
Port Type: 1-1/2" (38 mm) inlet and 1-1/2" (38 mm) discharge outlet
Voltage: 12V DC
Amp Draw:
15.5A @ 12V
20.0A @ 13.6V
Fuse Size: 25A
Height: 5-1/4" (133 mm)
Width: 8-1/2" (216 mm)
Weight: 5.1 lb (2.6 Kg)
