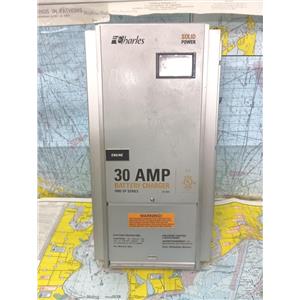

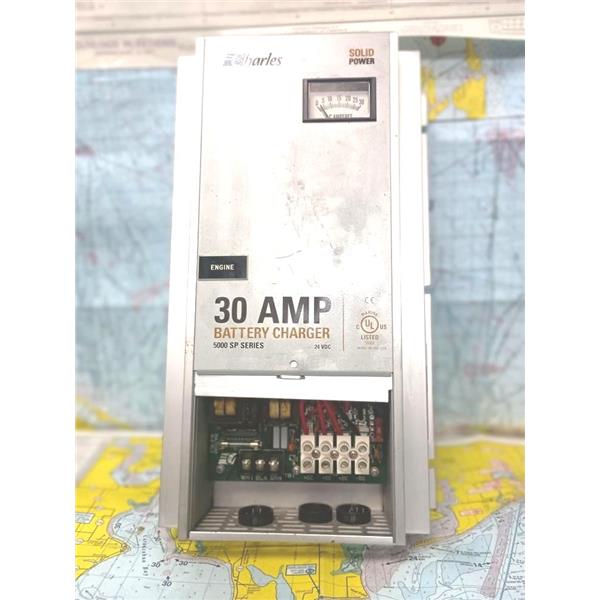

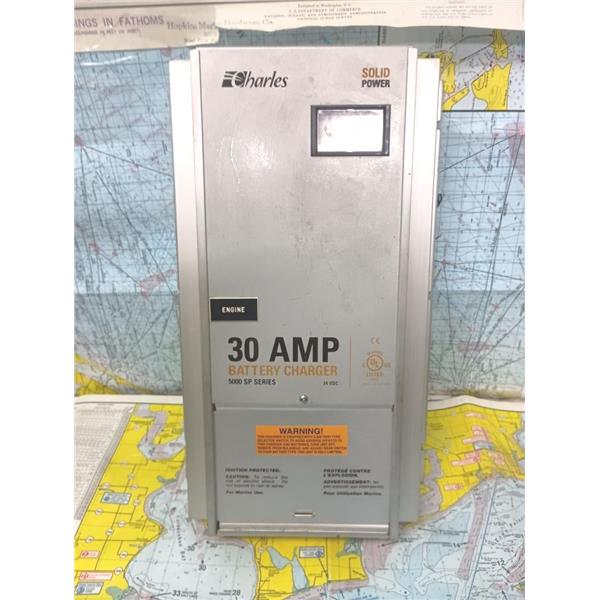

C-Charger® 5000 Series
Marine Electronic Battery Chargers
C-CHARGER® 5000 Series Marine Electronic Battery Chargers are the best choice for high-performance Marine UL listed products.
Utilizing high-quality components and corrosion-resistant, anodized aluminum housing, C-CHARGER® are built to last, performing in the toughest of marine environments. Charles 5000 SP battery chargers feature a battery type selector switch. This feature allows the boater to charge either lead acid, gel, or AGM batteries.

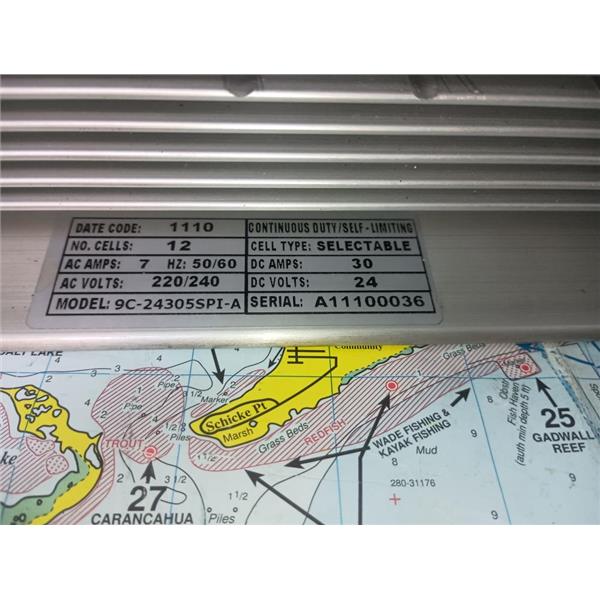

Specifications:
Input Voltage: 220/240 VAC
Output Voltage: 24 VDC
Input Amps: 7
Output Amps: 30
Num. of Cells: 12
Cell Type: Selectable
Approx. Dimensions: 3.5" H x 9" W x 15" L
Approx. Weight: 11 lbs
Marine UL listing ensures durability and safety
- Only complete line of battery chargers approved by Marine UL’s stringent specifications, testing and evaluation
- Tested for durability against static, impact, vibration and shock
- DC ammeter indicates the charge rate
- Ignition protected (USCG-33 CFR 183.410)
- AC and DC fuse protection
Multi-step charging with temperature compensation
- Restores up to 3 individual battery banks simultaneously
- Internal temperature compensation (12V 30-100 amp models and 24V 20-60 amp models) automatically adjusts output to precisely charge batteries according to ambient conditions
Corrosion resistant housing and components
- Constructed of tough, anodized aluminum housing that stands up to the elements-including extreme heat, humidity and salt air
- Circuit boards with UL recommended coatings provide the ultimate in environmental protection and hydrolyte stability-meets requirements of MIL-1-46058C
Run cool and quiet
- Cooling fan only operates during peak current demands
- Virtually no RFI or EMI interference exceeds FCC/Class B requirements
Easy to install and service

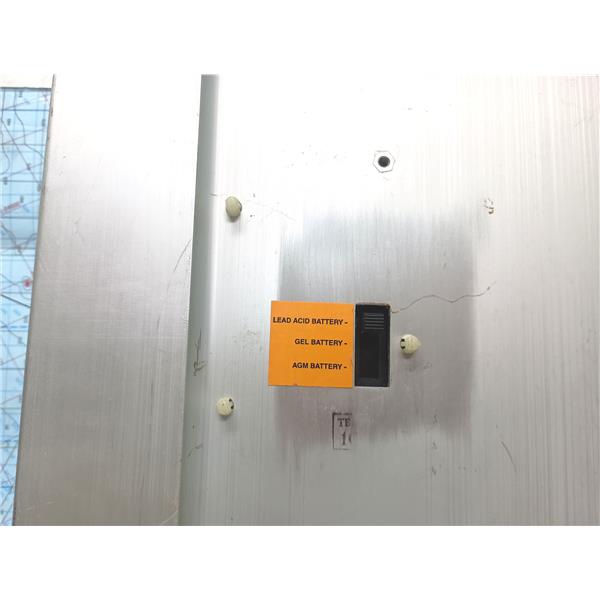

- Battery selector switch allows charger to be used with lead acid, gel, or AGM batteries

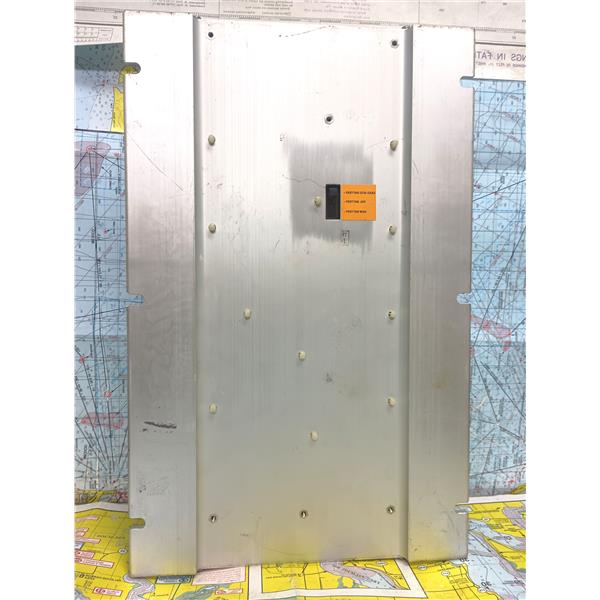

- Exterior slots for easy mounting
- Easy access to terminal connections and fuses
Specifications
| Condition | Used |
|---|---|
| Brand | CHARLES |
| Manufacturer Part Number | 9C-24305SPI-A |

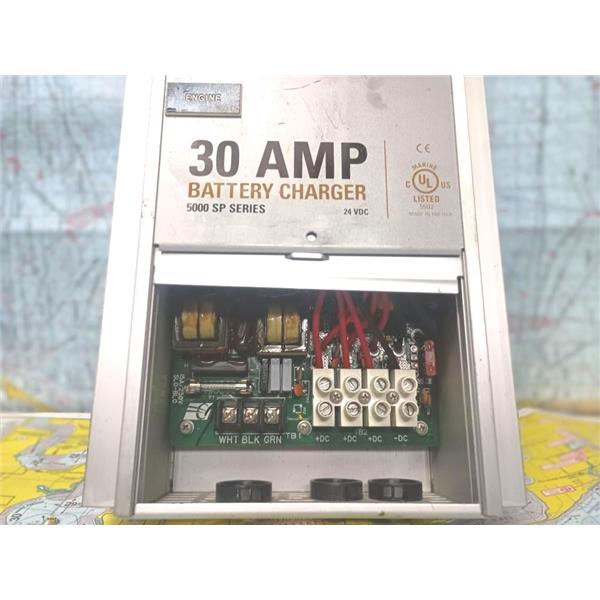

| Condition Description | THIS IS A 220/240 VOLT INPUT & 24 VOLT DC OUTPUT BATTERY CHARGER * SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME WIRING WILL BE REQUIRED WHEN RECEIVED * ITEM WAS PREOWNED, USED, IS IN FAIR PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY, CHARGE VOLTAGE IS PRESENT AT ALL 3 BANKS BUT HAS NOT BEEN TESTED FURTHER |
