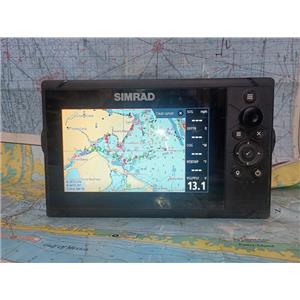

Boaters' Resale Shop of TX 2608 0804.01 SIMRAD CRUISE 7 CHARTPLOTTER DISPLAY

$299.68

Availability: 1 item(s)

BRS item #: 2608 0804.01

Estimate Shipping Cost

Enter your destination to get a shipping estimate

Details

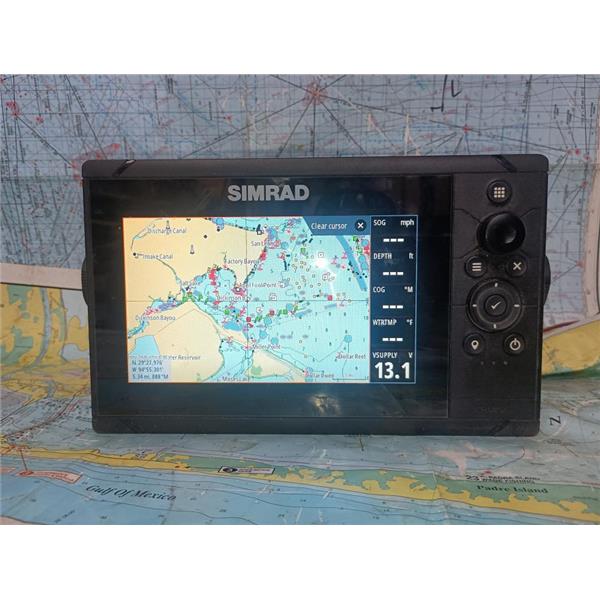

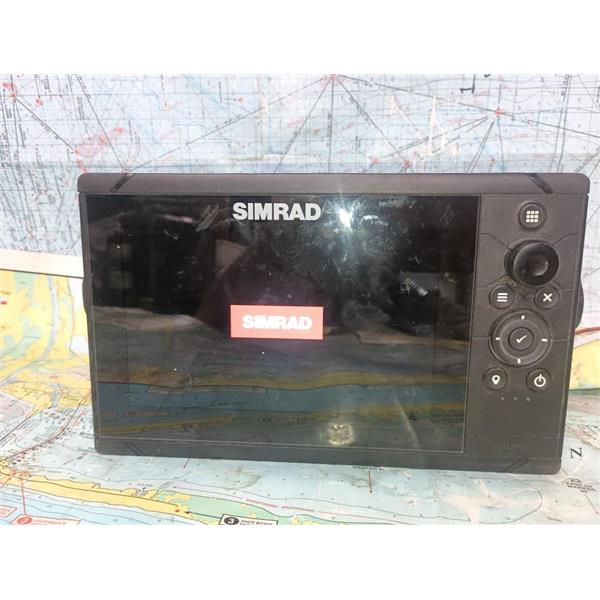

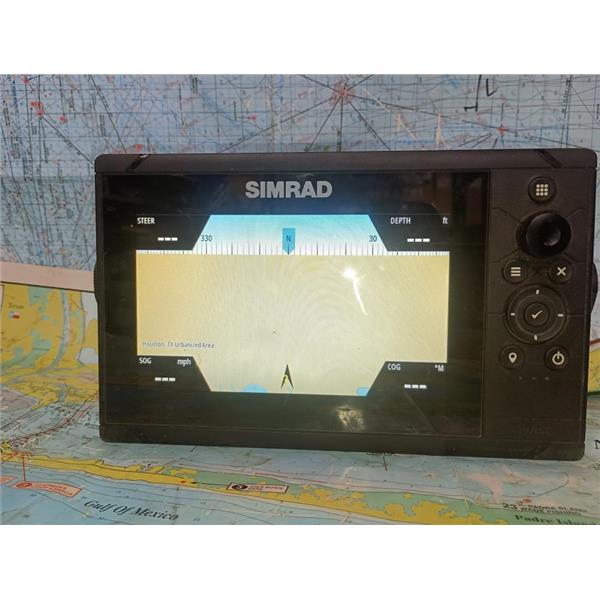

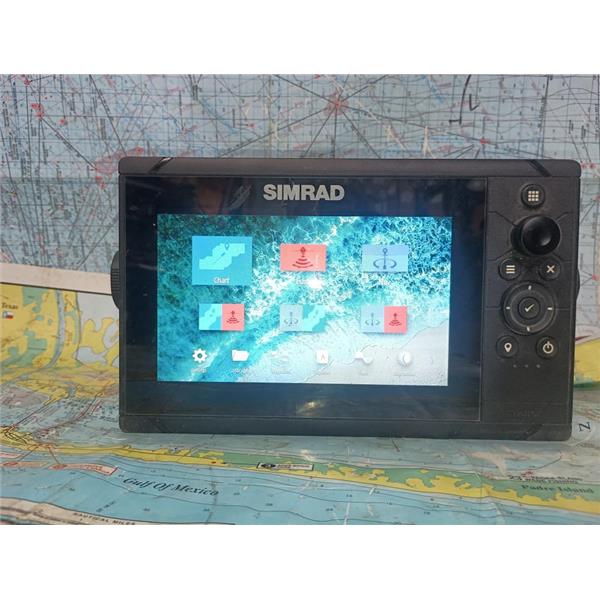

Boaters' Resale Shop of TX 2608 0804.01 SIMRAD CRUISE 7 CHARTPLOTTER DISPLAY with BRACKET ONLY * PN: 000-14996-001 * TRANSDUCER AND CABLES NOT INCLUDED (POWER CABLE FOR TESTING ONLY)  * SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME ASSEMBLY WILL BE REQUIRED *  ITEM WAS PREOWNED, USED, IS IN FAIRLY GOOD PHYSICAL CONDITION BUT CABLES ARE NOT INCLUDED BUT APPEARS TO BE OPERATING PROPERLY, POWERS UP, CONTROLS WORK AND DISPLAYS DATA BUT HAS NOT BEEN TESTED FURTHER

Key Features

Cruise confidently with simple menus plus easy-to-use rotary dial and keypad controls
Pre-loaded US coastal map
Supports a wide range of enhanced charts from C-MAP® and Navionics®
Pre-selected split screens to keep important data in view
Display depth, position, battery voltage and more

Simrad Cruise is the most intuitive, easy-to-use chartplotter available. Everything you need for simple and straightforward GPS navigation is right inside the box – sunlight viewable display, mounting bracket and a sonar transducer. Simrad Cruise can display charts, navigation and sonar in split-screen view, or separately in full screen. Rotary dial and keypad controls make navigating through menus, creating routes and accessing temperature, speed, depth readings and battery voltage effortless.

Specifications

Display
Backlight Color White
Display Resolution 800x480
Screen Brightness 1000 nits
Viewing Angles 70° top/bottom, 70° left/right
Physical
Dimensions W x H x D 263 mm x 145.5 x 100 mm (10.35" x 5.73" x 3.58") (with bracket)

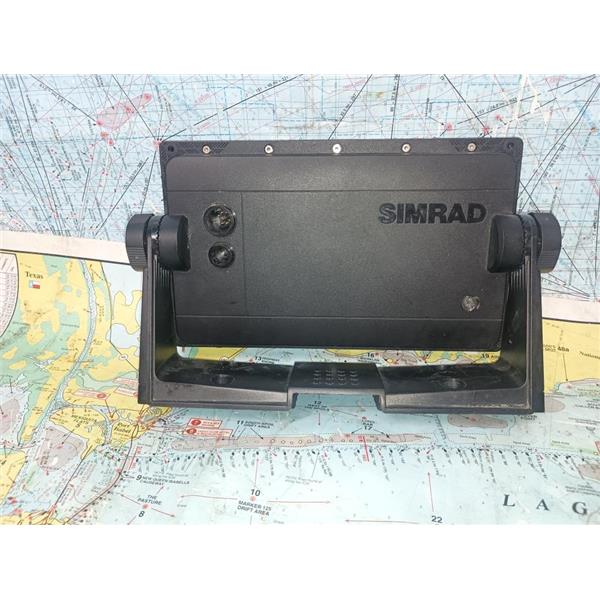

Mounting Type Bracket or Panel
Electrical
Power Consumption max 16.3 W
Recommended Fuse Rating 3A
Supply Voltage 10 - 17 V DC
Environment
Operating Temperature Range "-15°C to +55°C (5° F to 131° F)
Waterproofrating IPX 6 and 7
Connectivity
Bluetooth None
Ethernet Ports None
Connectivity Wi Fi None
N2K PG Ns N/A
NMEA 0183 Sentences supported No
NMEA 2000 Connectivity None
PC Connectivity None
SD Card Storage 1 Micro SD slot, max. 32GB each. >32 GB format to NTFS
Video None
MFD
AIS N/A
Autopilot N/A
Cartography included C-MAP US Coastal
Digital Switching N/A
GPS Internal, 1Hz, WAAS, MSAS, EGNOS
Multimedia N/A
Sonar Compatibility Integrated CHIRP. 8 Pin push fit connector
Weather N/A
Other
Interface Directional cursor button and rotary dial

Specifications

Condition Used
Brand SIMRAD

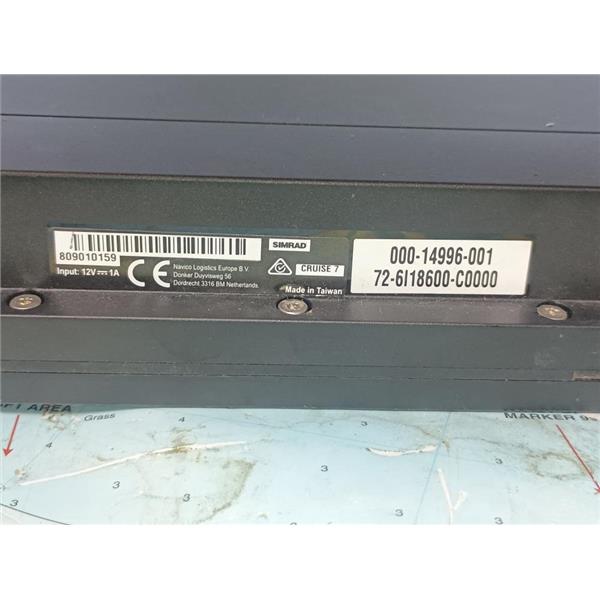

Manufacturer Part Number 000-14996-001
Condition Description DISPLAY & BRACKET ONLY * TRANSDUCER AND CABLES NOT INCLUDED (POWER CABLE FOR TESTING ONLY) * SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME ASSEMBLY WILL BE REQUIRED * ITEM WAS PREOWNED, USED, IS IN FAIRLY GOOD PHYSICAL CONDITION BUT CABLES ARE NOT INCLUDED BUT APPEARS TO BE OPERATING PROPERLY, POWERS UP, CONTROLS WORK AND DISPLAYS DATA BUT HAS NOT BEEN TESTED FURTHER
