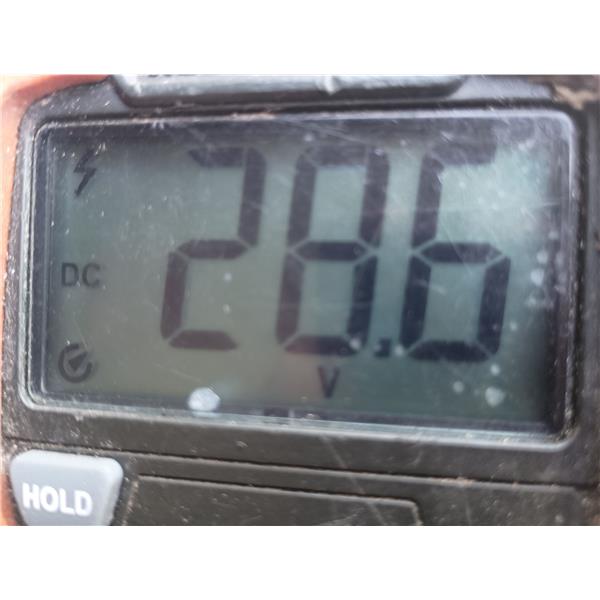

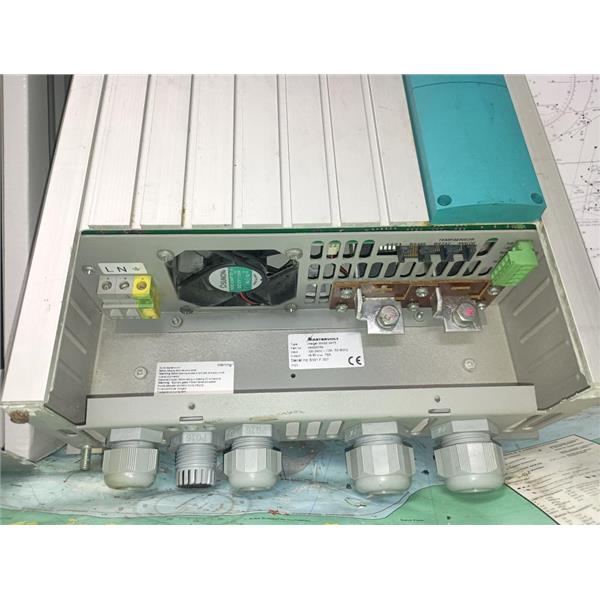

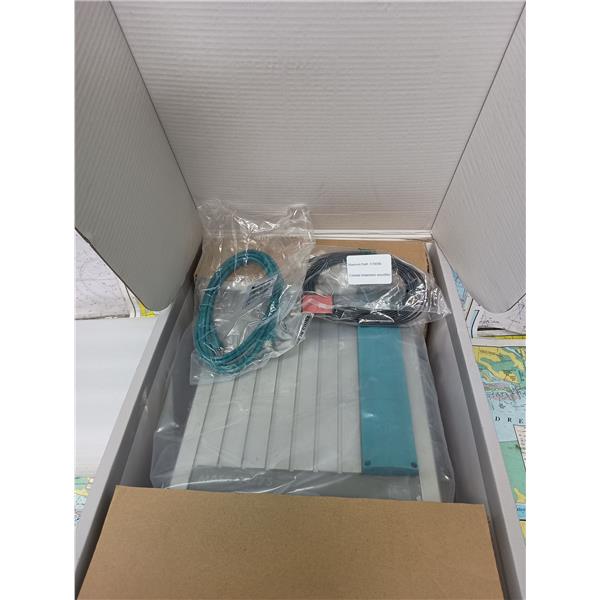

SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME ASSEMBLY WILL BE REQUIRED * ITEM WAS PREOWNED, USED, IN ORIGINAL BOX & PACKING, IS IN FAIR PHYSICAL CONDITION UNIT POWERS UP AND CHARGE VOLTAGE IS PRESENT APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER

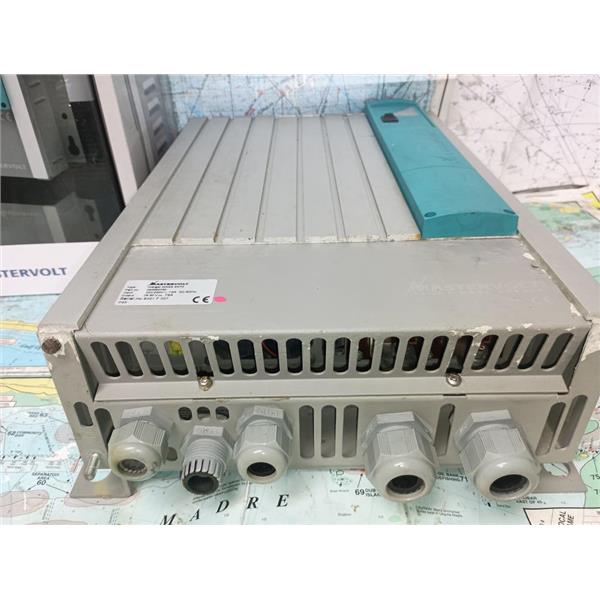

Mastervolt, 40020756, Mass 24/75 AUTOMATIC BATTERY CHARGER

As part of our constant search for eco-friendly and long-lasting solutions Mastervolt has developed the Green by Heart programme. Its impact on the Mass battery chargers include:

An exceptionally effective use of the consumed input current (cos phi) > 0.98!
Faster charging of batteries even when the input current is limited.
Use of top quality components with a long lifespan.
Savings in weight and space.
Fewer installation materials.
General specifications
Nom. output voltage 24 V
Total charge current 75 A
Number of battery outlets 1
Battery capacity range 150-750 Ah
Nominal input voltage 230 V (180-265 V) 50/60 Hz
Supplies your system without battery yes

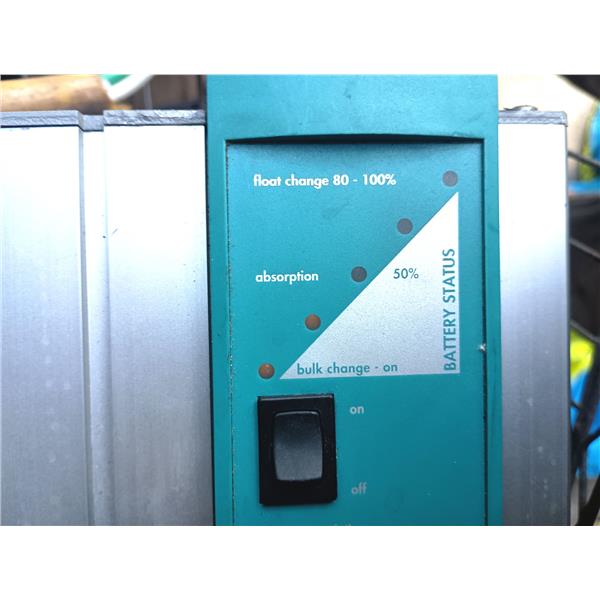

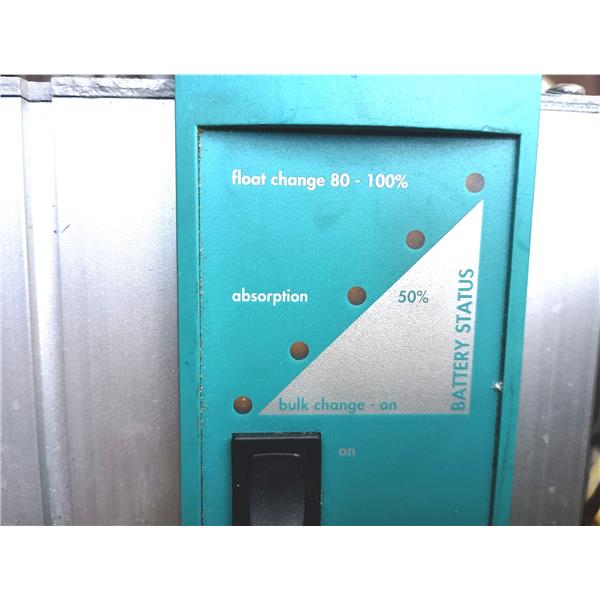

Display/read-out LED display
Dimensions hxwxd 420 x 318 x 130 mm 16.5 x 12.5 x 5.1 inch
Weight 7.7 kg 17.0 lb
Approvals CE ABYC A-31 RRR RS Lloyds DNV
Technical specifications
Charge characteristic IUoUo automatic 3-step+ for gel/AGM/wet/Lithium Ion
Charge voltage Bulk 28.5 V
Charge voltage Absorption 28.5 V
Absorption time 4 hours
Charge voltage Float (wet batteries) 26.5 V
Charge voltage Float (gel/AGM batteries) 27.6 V
Temperature compensation -60 mV/ C -33 mV/ F
Voltage compensation voltage drop compensation in DC cables up to 3 V
Power consumption (DC side) < 1 mA
Full load consumption (230 V AC) 2600 W
Power factor control > 0.95
Temperature range (ambient temp.) -25 C to 80 C derating > 45 C -13 to 176 F
Cooling vario fan
Sound level < 48 dBA at 1 mtr
Protection degree IP23
Protections over temperature over load short circuit high battery low battery
MasterBus compatible yes
CSI/DC alarm integrated in the battery charger as standard
