Boaters' Resale Shop of TX 2609 0503.01 GARMIN TRANSOM MOUNT TRANSDUCER CV51M-TM ONLY * MOUNTING HARDWARE & INSTRUCTIONS NOT INCLUDED * Follow the instructions carefully to avoid damaging your boat.
Garmin GT51M-TM, Transom Mount Depth & Temp Xdcr, 12pin, 16deg Tilted DownVu
Perfect Replacement Transducer for the coastal and offshore fisherman who want CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar, this transom mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects, structure and fish that pass below and to each side of your boat and is optimized for rough sea conditions. The CHIRP ClearVü/SideVü elements have a power rating of 500 W per element and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It also includes a built-in fast response temperature sensor. GT51M-TM includes a 12-pin transducer and a built-in fast response temperature sensor.
Transducer number of pins: 12-pin
Transducer cable length: 30 ft.
General
Transducer frequency CHIRP Mid-band (80-160 kHz); ClearVü/SideVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
Transducer power CHIRP Traditional 600 W; ClearVü/SideVü 500 W
Transducer beamwidth Traditional: 24°-13°
ClearVü/SideVü: 2.0°x51° @ 260 kHz and 1.4°x29° @ 455 kHz
Transducer maximum depth Traditional: 1,800 ft.; ClearVü: 1,000 ft.; SideVü: 750 ft.
Transducer cable length 30 ft.
Transducer depth/speed/temperature Depth and Temperature
Transducer number of pins 12-pin
Transducer supported deadrise/transom angles 0°-70° degree transom
Transducer Support
Transducer frequency CHIRP Mid-band (80-160 kHz); ClearVü/SideVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)

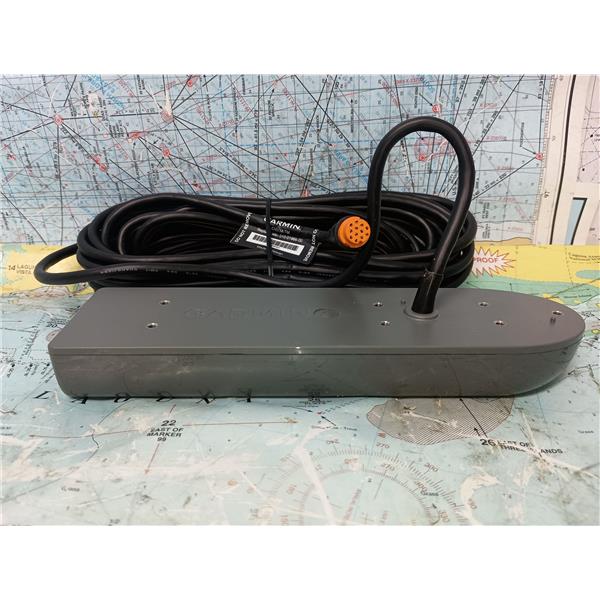

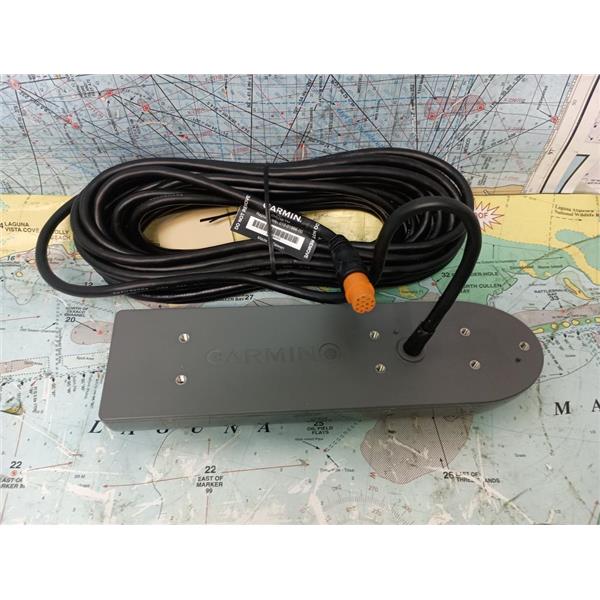

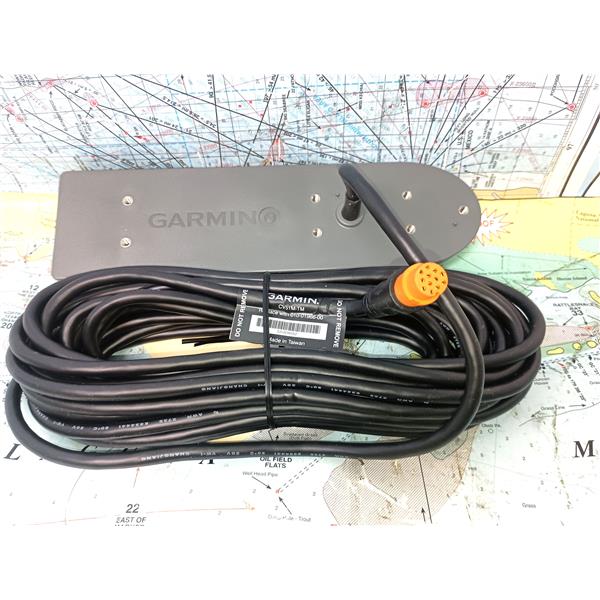

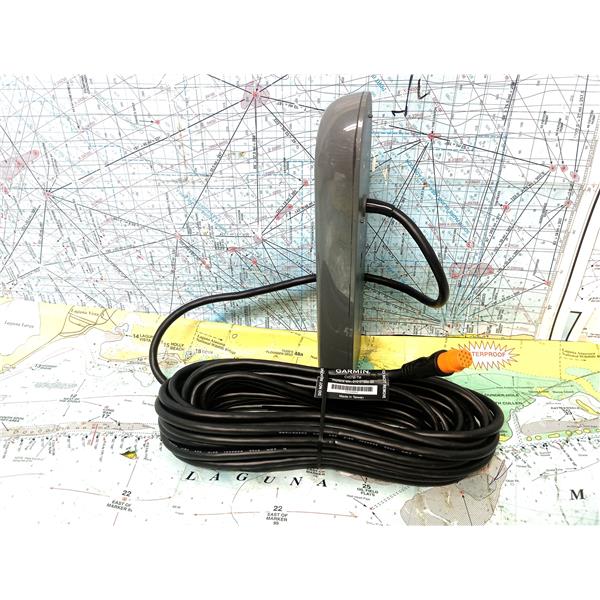

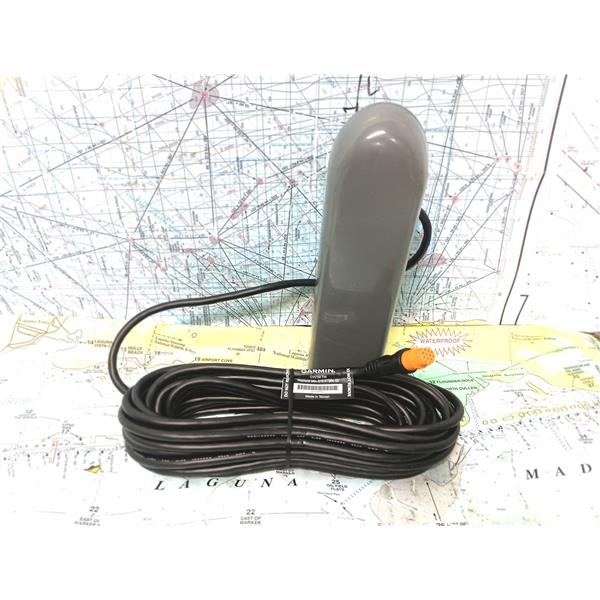

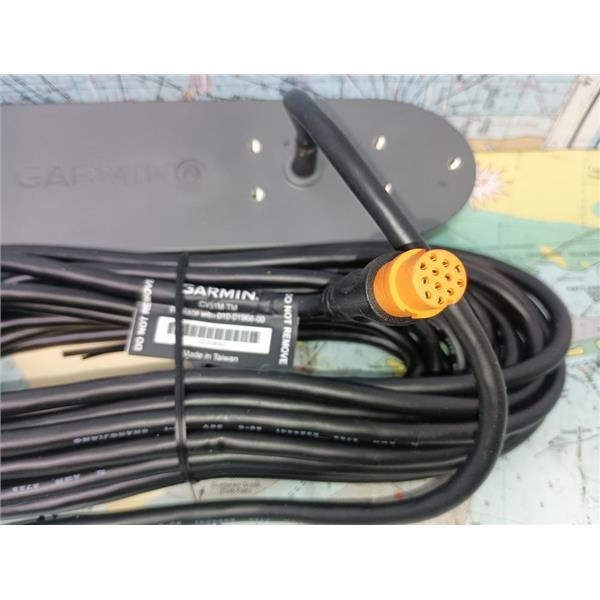

SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * ITEM WAS PREOWNED, OUT OF BOX "NEW" IN ORIGINAL SHIPPING CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND HAS NOT BEEN TESTED
Garmin GT51M-TM, Transom Mount Depth & Temp Xdcr, 12pin, 16deg Tilted DownVu
Perfect Replacement Transducer for the coastal and offshore fisherman who want CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar, this transom mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects, structure and fish that pass below and to each side of your boat and is optimized for rough sea conditions. The CHIRP ClearVü/SideVü elements have a power rating of 500 W per element and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It also includes a built-in fast response temperature sensor. GT51M-TM includes a 12-pin transducer and a built-in fast response temperature sensor.
Transducer number of pins: 12-pin
Transducer cable length: 30 ft.
General
Transducer frequency CHIRP Mid-band (80-160 kHz); ClearVü/SideVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
Transducer power CHIRP Traditional 600 W; ClearVü/SideVü 500 W
Transducer beamwidth Traditional: 24°-13°
ClearVü/SideVü: 2.0°x51° @ 260 kHz and 1.4°x29° @ 455 kHz
Transducer maximum depth Traditional: 1,800 ft.; ClearVü: 1,000 ft.; SideVü: 750 ft.
Transducer cable length 30 ft.
Transducer depth/speed/temperature Depth and Temperature
Transducer number of pins 12-pin
Transducer supported deadrise/transom angles 0°-70° degree transom
Transducer Support
Transducer frequency CHIRP Mid-band (80-160 kHz); ClearVü/SideVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
Specifications
| Condition | New other (see details) |
|---|---|
| Brand | GARMIN |
| Manufacturer Part Number | 010-01966-00 |
| Condition Description | TRANSDUCER CV51M-TM ONLY * MOUNTING HARDWARE & INSTRUCTIONS NOT INCLUDED * Follow the instructions carefully to avoid damaging your boat. SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * ITEM WAS PREOWNED, OUT OF BOX "NEW" IN ORIGINAL SHIPPING CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND HAS NOT BEEN TESTED |
