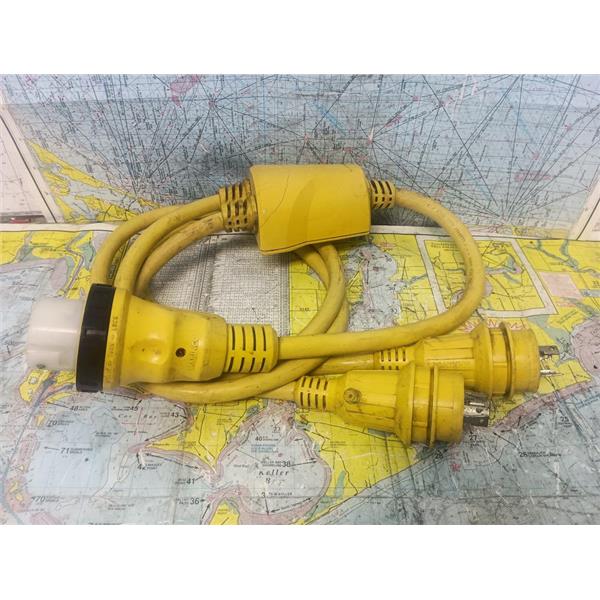

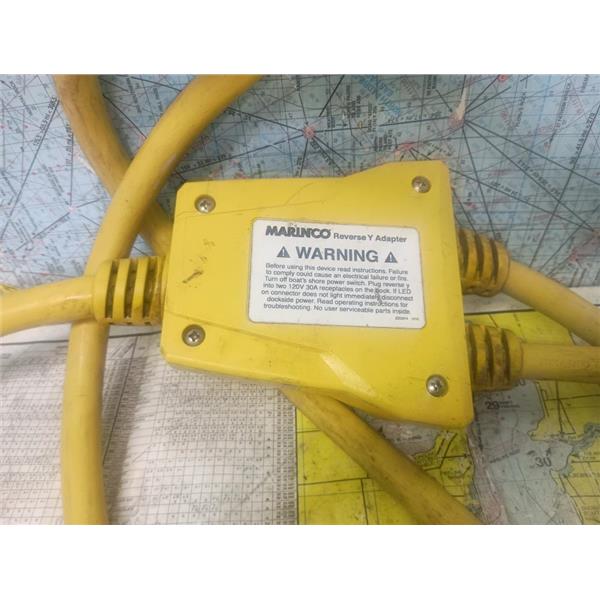

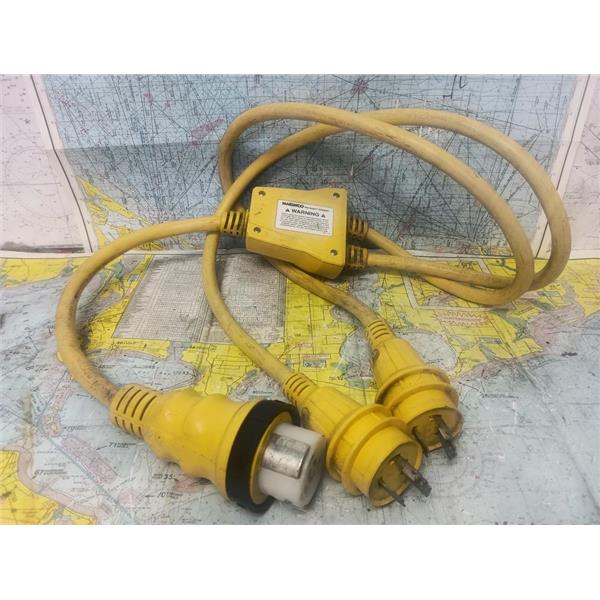

Boaters' Resale Shop of TX 2510 2504.01 MARINCO REVERSE Y-ADAPTER RY504-2-30 * Marinco Shore Power Reverse Y Adapter, Two 30 Amp 125V Male to 50 Amp 125/250V Female * SEE ALL 6 PHOTOS * SOLD AS PICTURED * ITEM WAS PREOWNED, USED, IS IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER
A reverse Y adapter allows you to draw 125V/250V AC current from two 30A outlets. To protect against shock hazard and reverse polarity, a special circuit does not allow current to flow until both plugs are connected properly. This keeps an unplugged plug from being “hot” due to the other plug being energized. The plugs are fully molded and come with sealing collars for use in wet environments.
Key Features
Special power isolation circuitry for added safety
Reverse Y Adapters are fully molded and equipped with Marinco’s unique sealing collar system for use in wet locations
Provides 50 Amp 125/250 Volt power when only (2) 30 Amp 125 Volt receptacles are available
Specifications
Overall Length: 76”

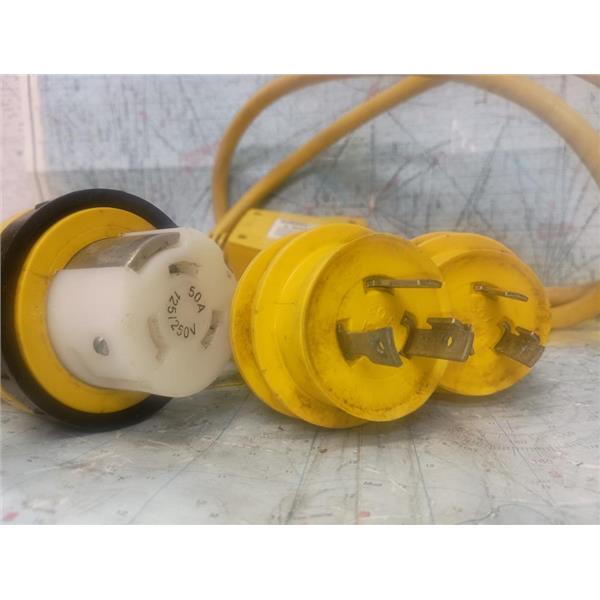

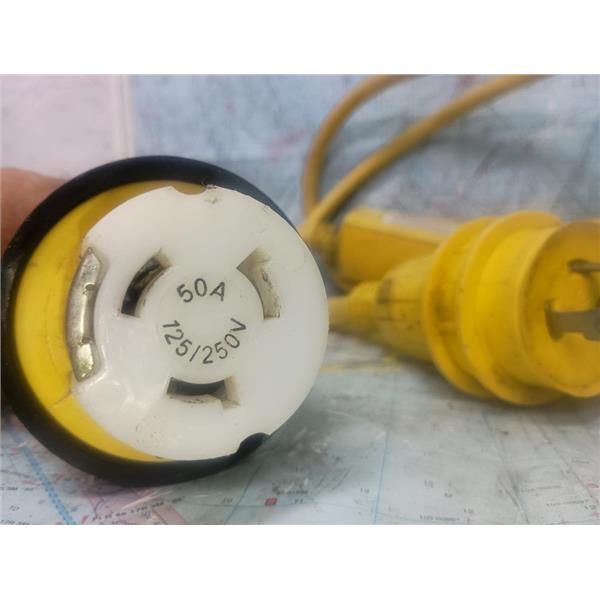

Connections: SS2-50R Female and (2)L5-30P Male twist-lock
Max. Amperage: 30A
Max. Voltage: 250V
Cable Size (50A): 6AWG
Conductors (50): 4
Cable Size (30A): 10AWG
Conductors (30A): 3
Material: PVC jacket, Nylon plug bodies, Nickel-Plated Brass contacts
A reverse Y adapter allows you to draw 125V/250V AC current from two 30A outlets. To protect against shock hazard and reverse polarity, a special circuit does not allow current to flow until both plugs are connected properly. This keeps an unplugged plug from being “hot” due to the other plug being energized. The plugs are fully molded and come with sealing collars for use in wet environments.
Key Features
Special power isolation circuitry for added safety
Reverse Y Adapters are fully molded and equipped with Marinco’s unique sealing collar system for use in wet locations
Provides 50 Amp 125/250 Volt power when only (2) 30 Amp 125 Volt receptacles are available
Specifications
Overall Length: 76”
Connections: SS2-50R Female and (2)L5-30P Male twist-lock
Max. Amperage: 30A
Max. Voltage: 250V
Cable Size (50A): 6AWG
Conductors (50): 4
Cable Size (30A): 10AWG
Conductors (30A): 3
Material: PVC jacket, Nylon plug bodies, Nickel-Plated Brass contacts
Specifications
| Condition | Used |
|---|---|
| Brand | MARINCO |
| Manufacturer Part Number | RY504-2-30 |
| Condition Description | SEE ALL 6 PHOTOS * SOLD AS PICTURED * ITEM WAS PREOWNED, USED, IS IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER |
