Boaters' Resale Shop of TX 2603 1403.05 SCHAEFER 8 SERIES BLOCK w BECKET 08-15

Boaters' Resale Shop of TX 2603 1403.05 SCHAEFER 8 SERIES BLOCK w BECKET 08-15 *

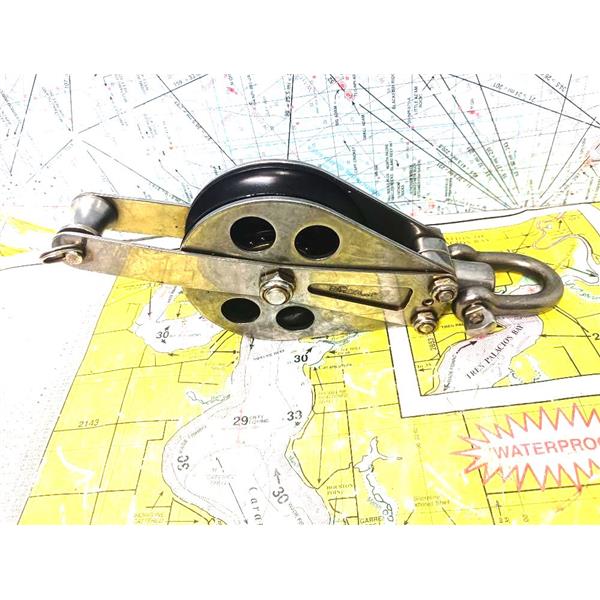

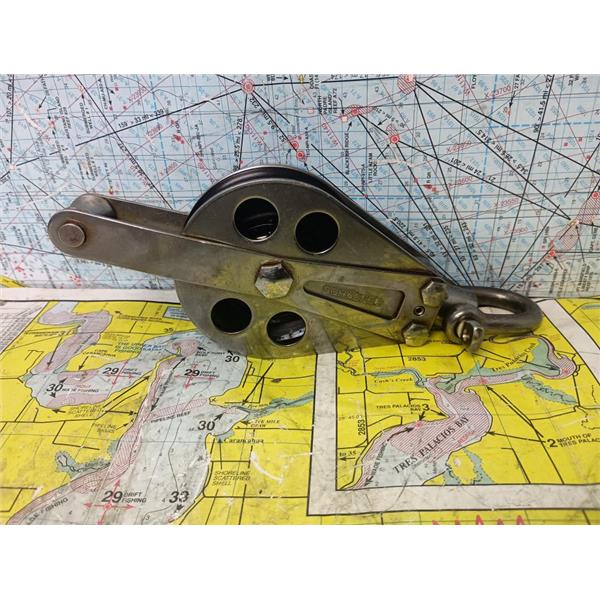

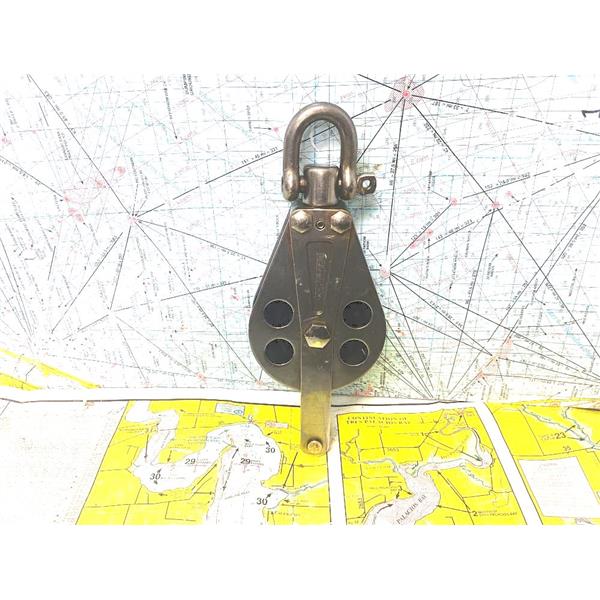

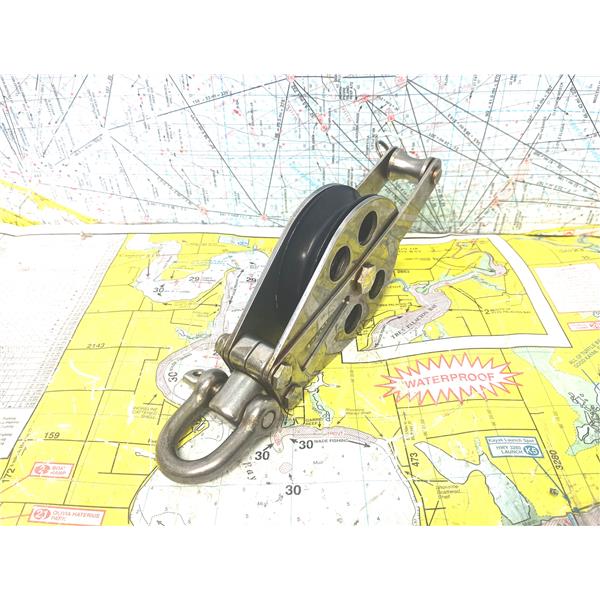

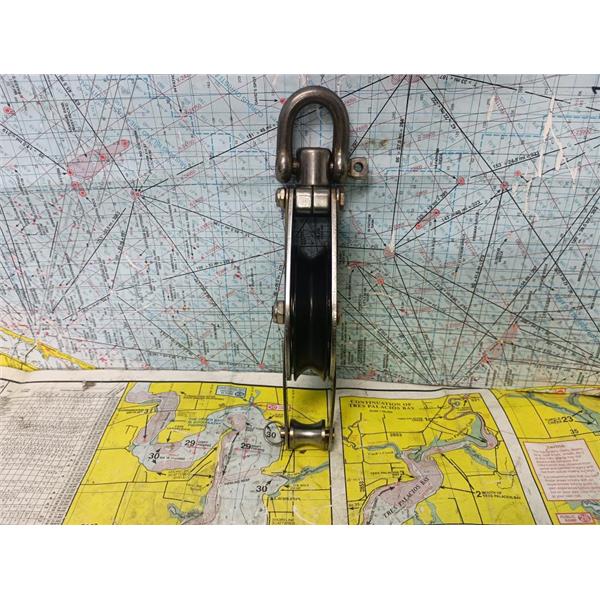

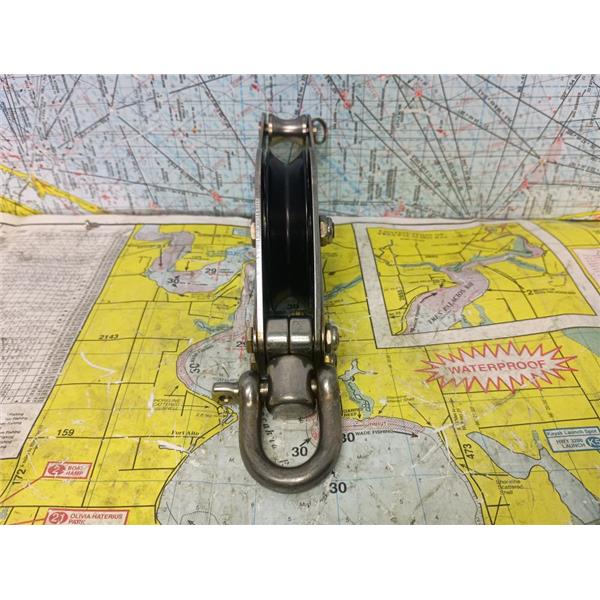

SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * ITEM WAS PREOWNED, USED, IS IN FAIRLY GOOD NAUTICAL (PHYSICAL) CONDITION AND APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER

Description
The Schaefer Stainless Steel Block with Becket (08-15) is strong, low friction and easy to disassemble for cleaning.
It provides smooth and reliable operation under the toughest conditions.

Features:
3-Way head allows free swiveling or front/side set positions
Smooth UV resistant Delrin™ sheave runs on a Nomex™ /Teflon™ bearings
Bolted construction for strength and easy disassembly for cleaning
Forged stainless steel D-shackle
Typical boat size: Mainsheet systems, halyard leads, genoa leads to 42', Control lines to 52'

Specifications:
Maximum line size: 9/16" (14 mm)
Safe working load: 2,750 lbs (1250 kg)
Pin diameter: 5/16"
Sheave diameter: 2-3/8" (60 mm)
Sheave width: 13/16" (21 mm)
Dimensions: 7" (178 mm) L x 2-3/8" (60 mm) W x 1-3/32" (28 mm) T
