Boaters’ Resale Shop of TX 2603 2101.05 RAYMARINE ACU-400 AUTOPILOT CONTROL UNIT

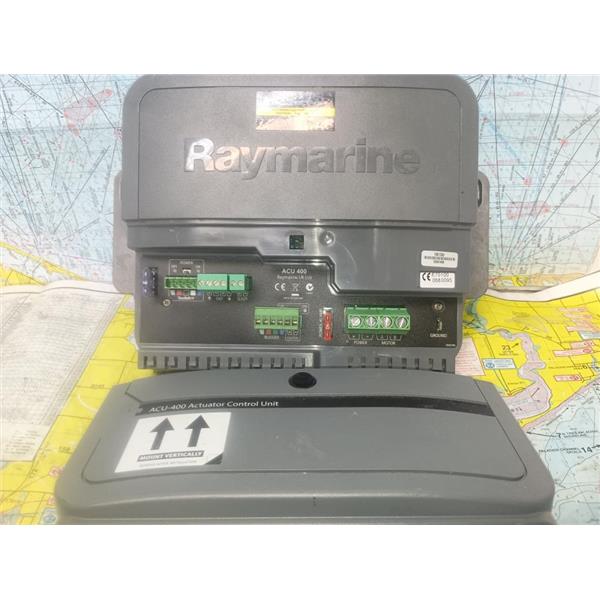

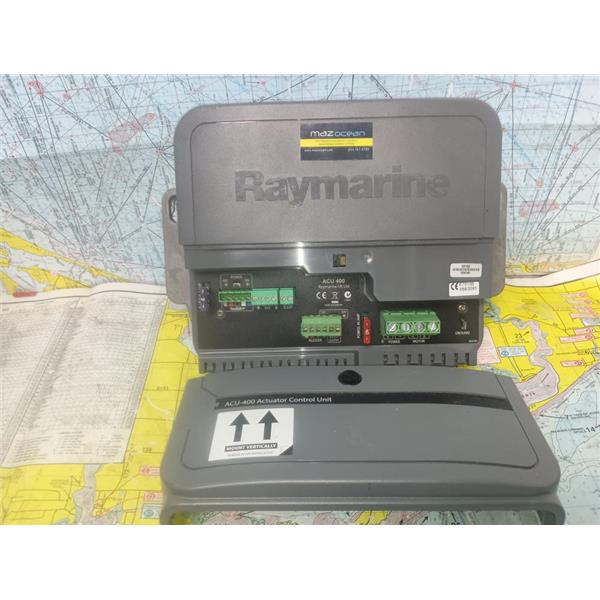

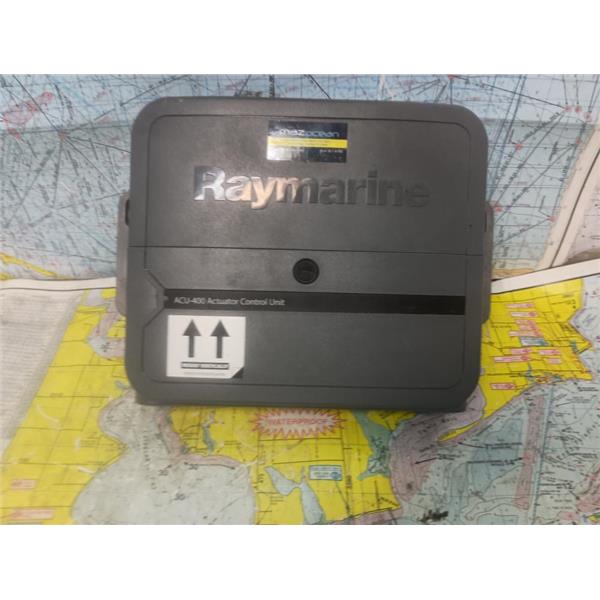

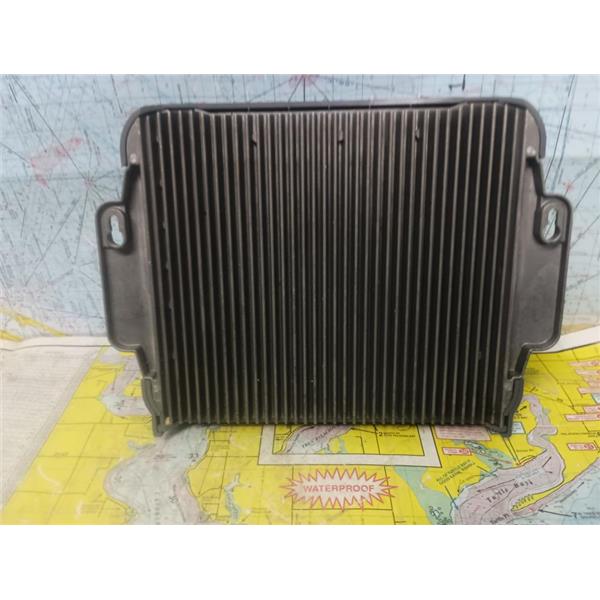

Boaters’ Resale Shop of TX 2603 2101.05 RAYMARINE ACU-400 AUTOPILOT CONTROL UNIT E70100 ONLY * SEATALKng(DISPLAY) POWER PLUG & CABLE NOT INCLUDED RAYMARINE ACU-400 (AUTOPILOT) ACUATOR CONTROL UNIT E70100 ONLY without SEATALKng(DISPLAY) POWER PLUG & CABLE * SEE ALL 6 PHOTOS * SOLD AS PICTURED * ITEM WAS PREOWNED, USED, IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY, POWERS UP AND VOLTAGES ARE PRESENT BUT HAS NOT BEEN TESTED FURTHER

Description:
The ACU-400 Autopilot Control Unit (ACU) of the Evolution Autopilot System, is a rugged Actuator Control Unit that delivers reliable autopilot drive power and also provides power to the SeaTalk ng bus.
Features:

    For Type 2 and 3 Raymarine hydraulic, linear and rotary mechanical drives

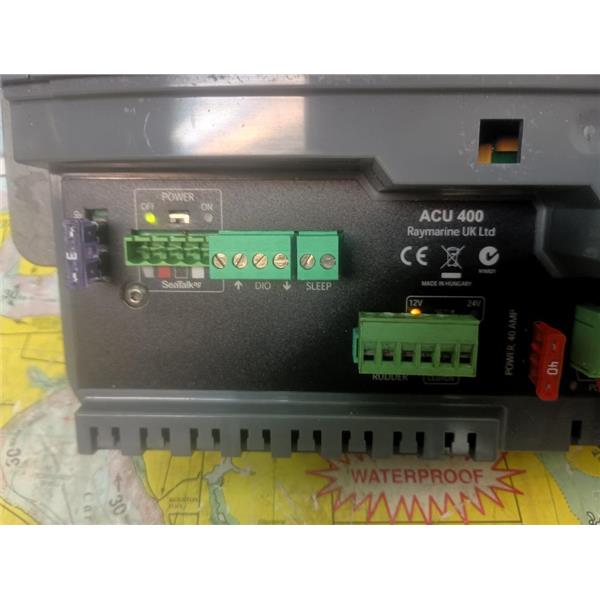

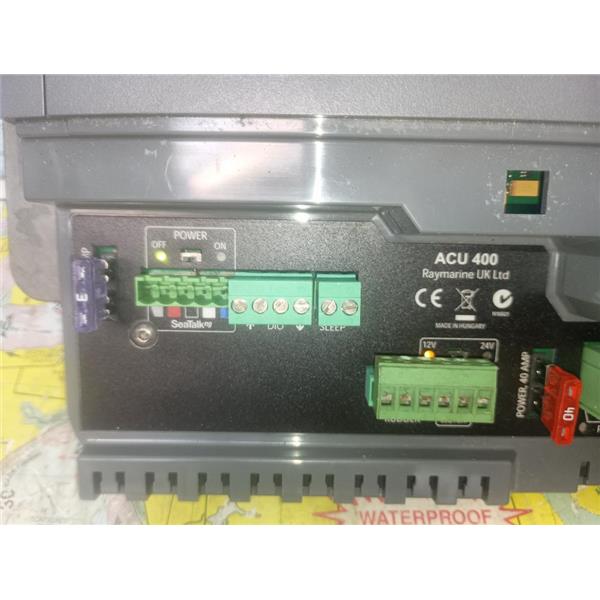

    Connections: Rudder reference sensor, Sleep switch, Power, Drive motor, Drive clutch, Ground, Digital Input / Output (DIO)
    Delivers reliable power to the SeaTalk ng bus and autopilot drive

Specifications:
    Current drive output: Max continuous 30 Amp
    Drive clutch output: Up to 4 Amp continuous
    Nominal supply voltage: 12 or 24V DC
    Operating voltage range: 10.8 - 31.2V DC
    Power consumption (standby) main power supply: 300 mA (12 / 24 V)
    Power Consumption (standby) SeaTalk ng power supply: 20 mA (12 V)
    SeaTalk ng LEN: 1
    SeaTalk ng power out: 3 Amps at 12 V
    Data connections: SeaTalk ng
    Operating temperature: -20° C to +55° C
    Storage temperature: -30° C to +70° C
    Relative humidity: Max 93%
    Waterproof rating: Drip resistant
    Dimensions: 285 mm x 211.5 mm x 64.5 mm (11.2" x 8.3" x 2.5")
