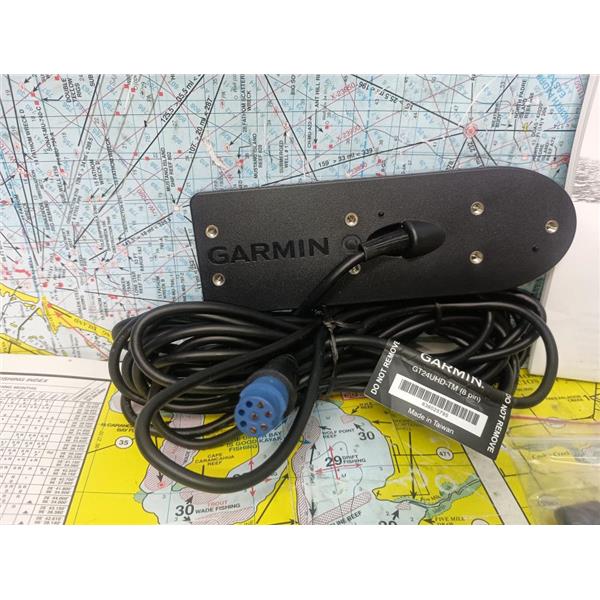

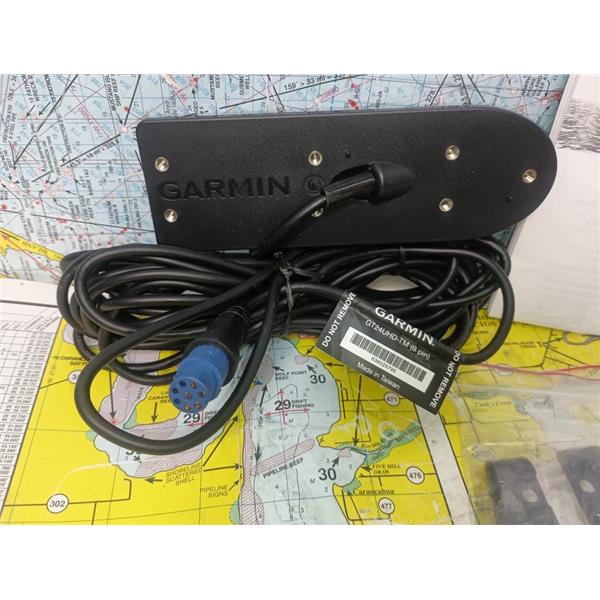

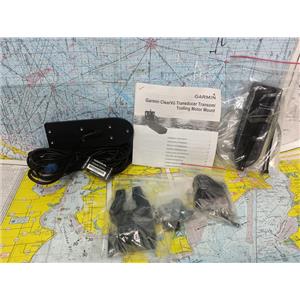

Boaters' Resale Shop of TX 2605 0901.25 GARMIN GT24UHD-TM SONAR TRANSDUCER KIT * SEE ALL 6 PHOTOS & DETAILS * SOLD AS PICTURED * ITEM WAS PREOWNED, OUT OF BOX & PACKING, IN GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND HAS NOT BEEN TESTED
Garmin GT24UHD-TM Ultra High-Definition Scanning Sonar Transducer - 010-12908-00
Description
The GT24 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see the difference between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVu scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar - all in one transducer.
Features:
One transducer provides the highest resolution ClearVu scanning sonar images available and amazingly clear high wide CHIRP traditional sonar
High wide CHIRP traditional sonar provides remarkably clear target separation and definition
See incredibly detailed images of fish and structure up to 200' below your boat with 800 kHz ClearVu sonar
Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts
Specifications:
Transducer frequency: CHIRP high wide (150-240 kHz); UHD ClearVu CHIRP 800 kHz (760-880 kHz)
Transducer power: CHIRP traditional 350W; ClearVu 350W
Transducer beamwidth:
CHIRP: 24°-16°
ClearVu: 0.94°x60° @ 800 kHz
Transducer maximum depth:
CHIRP: 800'
ClearVu: 200'
Transducer cable length: 20'
Transducer depth/speed/temperature: Depth and temperature
Transducer number of pins: 8-pin
Transducer supported deadrise/transom angles: 0°-70° transom

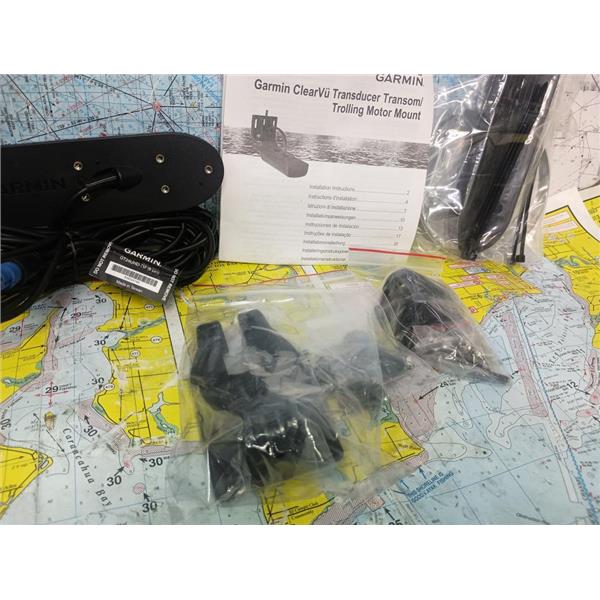

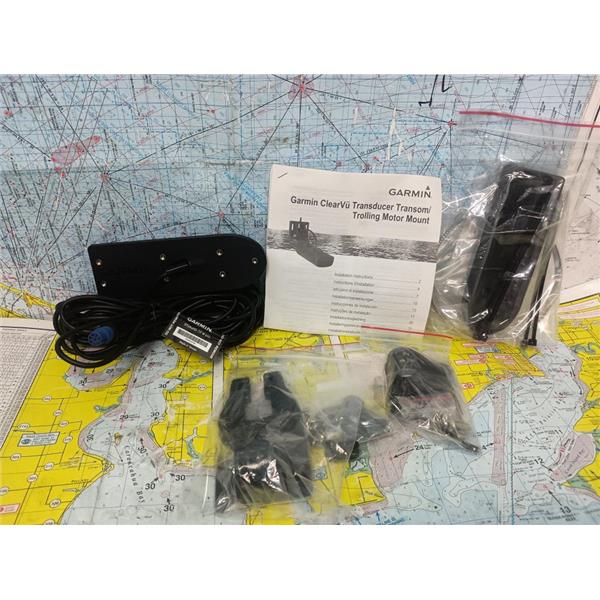

Included:
GT24UHD-TM transducer
Transom mount
Trolling motor mount
Mounting hardware
Documentation
Garmin GT24UHD-TM Ultra High-Definition Scanning Sonar Transducer - 010-12908-00
Description
The GT24 Ultra High-Definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see the difference between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVu scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar - all in one transducer.
Features:
One transducer provides the highest resolution ClearVu scanning sonar images available and amazingly clear high wide CHIRP traditional sonar
High wide CHIRP traditional sonar provides remarkably clear target separation and definition
See incredibly detailed images of fish and structure up to 200' below your boat with 800 kHz ClearVu sonar
Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts
Specifications:
Transducer frequency: CHIRP high wide (150-240 kHz); UHD ClearVu CHIRP 800 kHz (760-880 kHz)
Transducer power: CHIRP traditional 350W; ClearVu 350W
Transducer beamwidth:
CHIRP: 24°-16°
ClearVu: 0.94°x60° @ 800 kHz
Transducer maximum depth:
CHIRP: 800'
ClearVu: 200'
Transducer cable length: 20'
Transducer depth/speed/temperature: Depth and temperature
Transducer number of pins: 8-pin
Transducer supported deadrise/transom angles: 0°-70° transom
Included:
GT24UHD-TM transducer
Transom mount
Trolling motor mount
Mounting hardware
Documentation
Specifications
| Condition | New other (see details) |
|---|---|
| Brand | GARMIN |
| Manufacturer Part Number | 010-12908-00 |
| Condition Description | SEE ALL 6 PHOTOS & DETAILS * SOLD AS PICTURED * ITEM WAS PREOWNED, OUT OF BOX & PACKING, IN GREAT PHYSICAL CONDITION AND APPEARS TO HAVE NEVER BEEN INSTALLED OR DEPLOYED AND HAS NOT BEEN TESTED |
