Boaters' Resale Shop of TX 2608 0105.01 AC/DC POWER DISTRIBUTION CONTROL PANEL

Boaters' Resale Shop of TX 2608 0105.01 AC/DC POWER DISTRIBUTION CONTROL PANEL * SEE ALL 6 PHOTOS & DETAILS * SOLD IN CONDITION PICTURED * SOME ASSEMBLY WILL BE REQUIRED* ITEM WAS PREOWNED, USED, IS IN FAIRLY GOOD PHYSICAL CONDITION AND APPEARS TO BE OPERATING PROPERLY BUT HAS NOT BEEN TESTED FURTHER

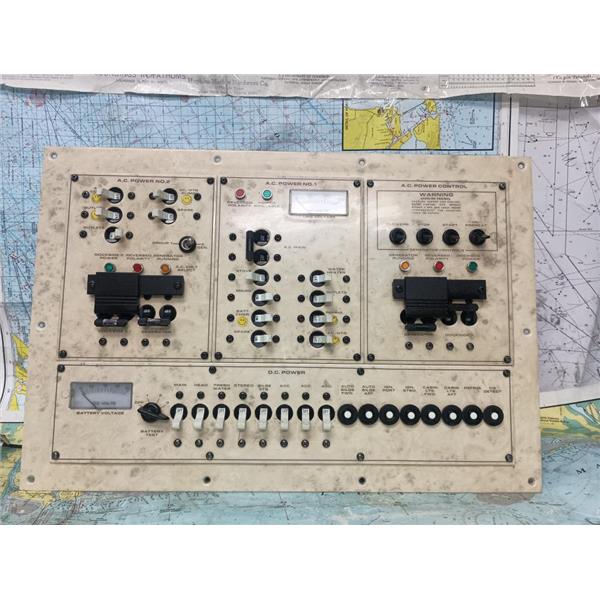

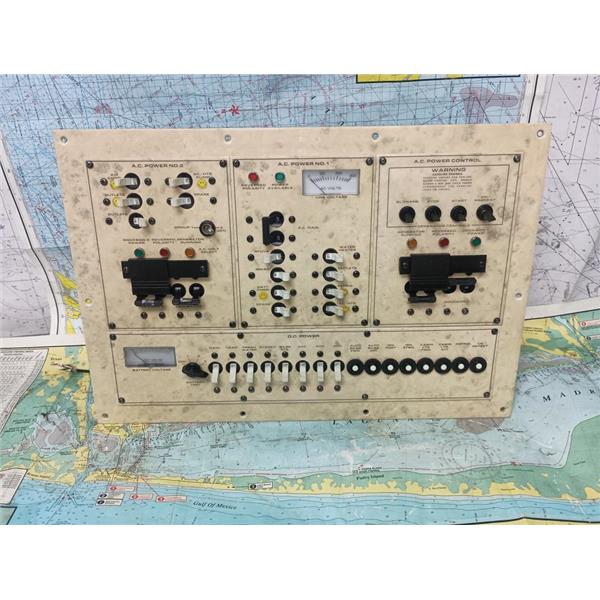

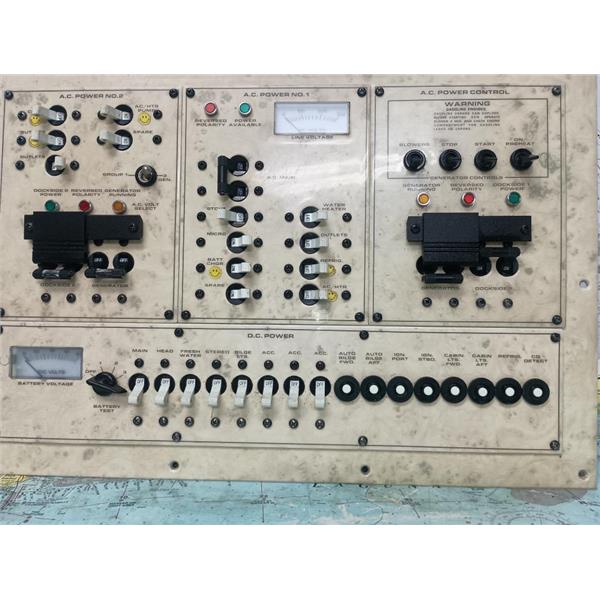

AC/DC POWER DISTRIBUTION CONTROL PANEL

AC POWER NO. 1 SPECS INCLUDES
* FOUR :
* ONE MAIN BREAKER
* 8 ON/OFF BREAKERS
* ONE 300 VOLT AC LINE VOLTAGE METER

AC POWER NO. 2 SPECS INCLUDES
* ONE DUAL "DOCKSIDE 2" BREAKER & ONE "GENERATOR" DUAL BREAKER
* 5 AC POWER NO. 2 BRAKERS(4@15 AMPS & ONE @ 25 AMPS)
* "ONE GROUP & TWO GENERATOR" SWITCH

AC POWER CONTROL SECTION INCLUDES
* FOUR GENERATOR  CONTROLS
* 3 INDICATOR LIGHTS
* ONE DUAL 30 AMP GENERATOR BREAKER
* ONE DUAL 30 AMP DOCKSIDE 1 BREAKER

DC POWER SECTION INCLUDES
* EIGHT- 20 AMP PUSH BUTTON TYPE BREAKERS
* EIGHT TOGGLE BREAKERS (SIX: 15 AMP, ONE: 20 AMP & ONE: 50 AMP)
* BATTERY TEST SWITCH
* BATTERY DC VOLTAGE METER(16 VOLTS MAX)

APPROX. OVERALL DIMENSIONS:
* DEPTH: 5"
* HEIGHT: 12.5"
* WIDTH: 18.5"
APPROX. WEIGHT: 13 LBS
